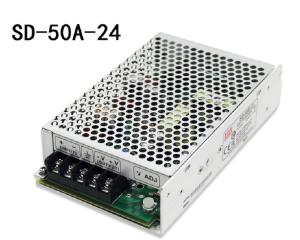

SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A

Beijing Ding Ding Future Technology Co.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A

Brand Name : Mean Well

Model Number : SD-50A-24

Certification : CE/UL

Place of Origin : CN

MOQ : 1 piece

Price : 1 USD

Payment Terms : L/C,T/T

Supply Ability : 3000 pieces per month

Delivery Time : 12-16 weeks

Packaging Details : wooden cartons

Brand : Mean Well

Product Name : DC /DC converter

Model Name : SD-50A-24

DC input : A:9.2 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC

DC output power : 5V/12V/24V

Protection : over load/ over voltgae

Working temp. : -10 ~ +60℃ (Refer to "Derating Curve")

Working humidity : 20 ~ 90% RH non-condensing

Storage : -20 ~ +85℃, 10 ~ 95% RH

Dimension : 159*97*38mm (L*W*H)

eight : 0.43kg

Contact Now

SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A

Mean Well Original DC to DC module SD-50A-24 Industrial DC module 9.2-18V 12V to 24V 2.1A



Features :

  • Wide input range
  • Built in EMI filter, low ripple noise
  • 100% full load burn in test
  • Fixed switching frequency at 83KHZ
  • Low cost
  • 2 years warranty
MODEL SD-50A-5 SD-50B-5 SD-50C-5 SD-50A-12 SD-50B-12 SD-50C-12 SD-50A-24 SD-50B-24 SD-50C-24





OUTPUT

DC VOLTAGE 5V 12V 24V
RATED CURRENT 10A 4.2A 2.1A
CURRENT RANGE 0 ~ 10A 0 ~ 4.2A 0 ~ 2.1A
RATED POWER 50W 50.4W 50.4W
RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.5 ~ 5.5VDC 11 ~ 16VDC 23 ~ 30VDC
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.3% ±0.2%
LOAD REGULATION ±0.5% ±0.3% ±0.2%
SETUP, RISE, HOLD UP TIME 2.5s, 50ms, at full load


INPUT

VOLTAGE RANGE A:9.2 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC
EFFICIENCY (Typ.) 70% 73% 76% 72% 75% 78% 74% 80% 83%
DC CURRENT 7A/12V 3A/24V 1.5A/48V 7A/12V 3A/24V 1.5A/48V 7A/12V 3A/24V 1.5A/48V


PROTECTION

OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V/10% load 16.8 ~ 20V/10% load 31.5 ~ 37.5V/10% load
Protection type : Hiccup mode, recovers automatically after fault condition is removed



ENVIRONMENT

WORKING TEMP. -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes


SAFETY & EMC

(Note 4)

SAFETY STANDARDS EAC TP TC 004 approved, Design refer to LVD, AS/NZS 62368.1
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55024, heavy industry level, EAC TP TC 020


OTHERS

MTBF 3293.1K hrs min. Telcordia SR-332 (Bellcore) ; 512.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.43Kg; 24pcs/11.35Kg/0.83CUFT

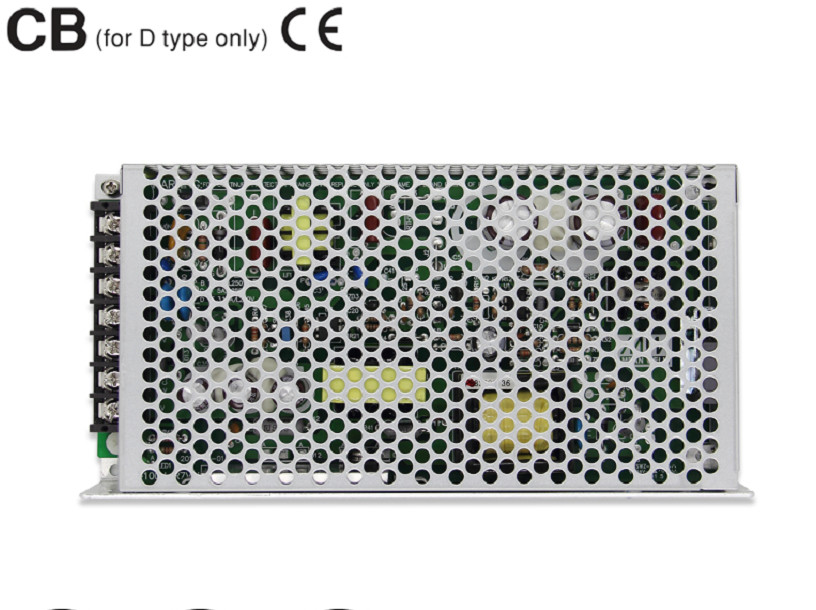

SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A


SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1ASD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A


SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1ASD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A

SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A


Solutions
We support satellite and terrestrial telecom operators with site RF audits, orbital slot planning, space-grade technical support, and in-orbit maintenance simulations. Our partnerships with aerospace leaders ensure mission-critical reliability.


FAQ :

1.Q: Can I get samples and see how much they cost?

A: Yep! Samples are doable. They cost the same as buying a bunch, but you have to pay for shipping. I'll send the price along with the sample info.


2.Q: What if something's broken?

A: We've been doing this for 10 years, so we don't mess around. If there's a problem, we'll check it out. If it's our fault, we'll fix it like we said in the contract. Our team is here to help—no stress!


3.Q: Are the products legit?

A: 100% new and original, in fresh packaging. We test each one before sending—no surprises!


4.Q: How long is the warranty?

A: A whole year! If anything goes wrong with quality in that time, we'll sort it.


5.Q: What if I get a bad one?

A: Send it back within the year, and we'll pay for shipping. We'll send a new one right away—easy peasy!



SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A



SD-50A-24 Industrial DC DC Converter Module 12V To 24V 2.1A
